Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
Multicast support: Yes
Management protocols: SNMPv1/v2c/v3, SNTP
Rack mounting: Yes
Form factor: 1U
Product colour: Black
Number of fans: 1 fan(s)
Power source: AC
Power supply included: Yes
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 173.9 W
Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 150 W
Operating temperature (T-T): 0 – 50 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Heat dissipation: 594.46 BTU/h
Width: 294 mm
Depth: 180 mm
Height: 44 mm
Package width: 250 mm
Package depth: 400 mm
Package height: 80 mm
Package weight: 2.12 kg
Certification: CE, FCC, RoHS
Harmonized System (HS) code: 85176990

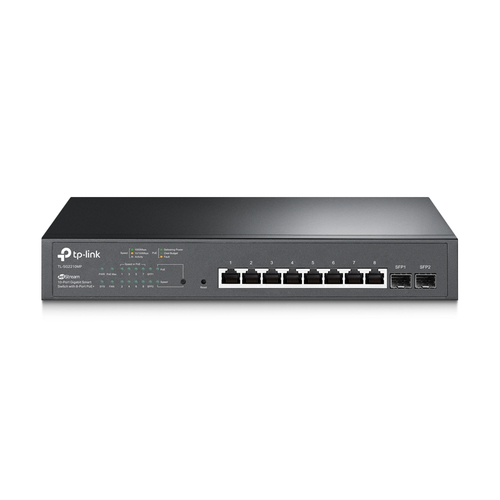

Realize More Possibilities with Omada JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
Software Defined Networking (SDN) with Cloud Access Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
