| HPE Aruba Networking Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 370W 1930

* Imágenes de referencia

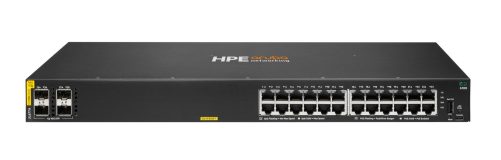

HPE Aruba Networking Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 370W 1930

SKU: JL684B

HPE Aruba Networking Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 370W 1930, Managed, L2/L3/L4, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

  • Switch type: Managed
  • Switch layer: L2/L3/L4
  • Quality of Service (QoS) support: Yes
  • Web-based management: Yes
  • Cloud-managed: Yes
  • ARP inspection: Yes
  • System event log: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP+ module slots quantity: 4
  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: Yes
  • Port mirroring: Yes
  • Full duplex: Yes
  • Flow control support: Yes
  • Link aggregation: Yes
  • Rate limiting: Yes
  • Auto MDI/MDI-X: Yes
  • Spanning tree protocol: Yes
  • Auto-sensing: Yes
  • VLAN support: Yes
  • Switching capacity: 128 Gbit/s
  • Throughput: 95.23 Mpps
  • MAC address table: 16000 entries
  • Latency (10-100 Mbps): 4.7 µs
  • Latency (1 Gbps): 2.4 µs
  • Latency (10 Gbps): 1.3 µs
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
  • Packet buffer memory: 1.5 MB
  • DHCP features: DHCP client
  • Access Control List (ACL): Yes
  • IGMP snooping: Yes
  • SSH/SSL support: Yes
  • Rack mounting: Yes
  • Stackable: No
  • Form factor: 1U
  • Product colour: White
  • Built-in processor: Yes
  • Processor model: ARM Cortex-A9
  • Processor frequency: 800 MHz
  • Memory type: SDRAM / Flash
  • Internal memory: 512 MB
  • Flash memory: 256 MB
  • Power source: AC
  • Power supply included: Yes
  • AC input voltage: 100 – 240 V
  • AC input frequency: 50 – 60 Hz
  • Power consumption (max): 490 W
  • Power over Ethernet (PoE): Yes
  • Total Power over Ethernet (PoE) budget: 370 W
  • Operating temperature (T-T): 0 – 40 °C
  • Storage temperature (T-T): -40 – 70 °C
  • Operating relative humidity (H-H): 15 – 95%
  • Storage relative humidity (H-H): 15 – 95%
  • Operating altitude: 0 – 3048 m
  • Width: 442.5 mm
  • Depth: 264.7 mm
  • Height: 43.9 mm
  • Weight: 3.73 kg
