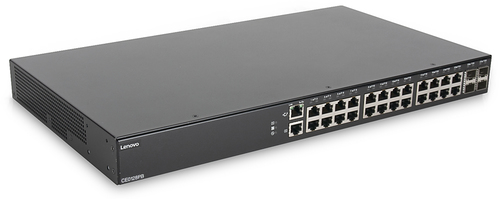

Lenovo CE0128PB Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

SKU: 7Z360012WW

Lenovo CE0128PB, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

  • Switch type: Managed
  • Switch layer: L2/L3
  • Quality of Service (QoS) support: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • SFP+ module slots quantity: 4
  • Console port: RJ-45
  • Power connector: AC-in jack
  • Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • 10G support: Yes
  • Copper ethernet cabling technology: 1000BASE-T
  • Cable types supported: Cat5, Cat5e
  • Port mirroring: Yes
  • Full duplex: Yes
  • IP routing: Yes
  • Policy-based routing: Yes
  • Routing entries: 512
  • Flow control support: Yes
  • Link aggregation: Yes
  • Spanning tree protocol: Yes
  • Auto-sensing: Yes
  • VLAN support: Yes
  • Virtual LAN features: Tagged VLAN
  • Number of VLANs: 4093
  • Throughput: 95000000 Mpps
  • MAC address table: 16384 entries
  • Latency (1 Gbps): 4 µs
  • Latency (10 Gbps): 2 µs
  • Number of IP interfaces: 192
  • Jumbo frames support: Yes
  • Jumbo frames: 9216
  • Packet buffer memory: 1.5 MB
  • DHCP features: DHCP client, DHCP relay, DHCP server
  • Access Control List (ACL): Yes
  • Access Control List (ACL) IPv4 entries: 256
  • Access Control List (ACL) IPv6 entries: 256
  • Security algorithms: SNMP, SNMPv3, SSH
  • SSH/SSL support: Yes
  • Authentication type: RADIUS
  • Multicast support: Yes
  • Management protocols: IPv4/IPv6
  • GARP VLAN Registration Protocol (GVRP): Yes
  • Routing protocols: VRRP
  • Rack mounting: Yes
  • Stackable: Yes
  • Form factor: 1U
  • Product colour: Black
  • Airflow direction: Side-to-side airflow
  • Number of fans: 3 fan(s)
  • Physical stacking (units): 8
  • Mean time between failures (MTBF): 600000 h
  • Power supply included: Yes
  • Number of power supply units: 1
  • AC input voltage: 100 – 240 V
  • AC input frequency: 50 – 60 Hz
  • Power consumption (typical): 260 W
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) ports quantity: 24
  • Power over Ethernet (PoE) power per port: 30 W
  • Operating temperature (T-T): 0 – 50 °C
  • Operating relative humidity (H-H): 5 – 95%
  • Operating altitude: 0 – 3000 m
  • Width: 441 mm
  • Depth: 254 mm
  • Height: 44 mm
  • Weight: 3.7 kg
  • Manual: Yes
  • Certification: FCC Part 15, Class A; UL 60950-1 / UL 62368-1, ICES-003, Issue 6, Class A; CSA C22.2 60950-1 / CSA C22.2 62368-1, NOM-19, IEC 60950-1, RoHS, CE Mark, TUV-GS, EAC, CCC GB4943.1, GB/T9254, YD/T993, CECP CQC3140, VCCI-CISPR32:2016, Class A, BSMI CNS13438, Class A; CNS14336-1, KN32, Class A; KN35, AS/NZS CISPR 32 Class A, CB
  • Harmonized System (HS) code: 85176990
